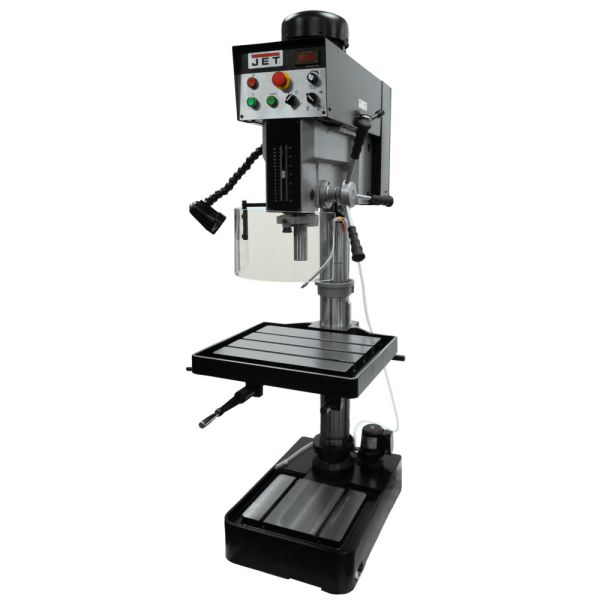

Jet 354225 JDP-20EVST-230 20 EVS Drill Press Tapping

JET Electronic Variable Speed Drill Presses offer spindle speed rates between 65 and 2000 RPM for a wide variety of applications. Designed to permit continuous speed adjustment - even during operation. Tapping capability, an emergency stop and a heavy-duty casted head are but a few of the features JET includes to enhance overall use and accuracy.

Free Shipping
$6,399.00
Model# 354225
SKU
731325503883

This item may qualify for an upto 5% OFF further discount.  Check Eligibility.

Jet 354225 Drill Press Tapping Features:

  • Heavy-duty steel column for increased precision and rigidity
  • Heavy Duty casted head for more accuracy and rigidity
  • Large Precision Ground T-slot Production Table for easy set ups
  • Latest AC Inverter Variable Speed Technology
  • CSA Coolant System
  • Spindle is supported by high quality ball bearings
  • CSA/CUS: Following strict guidelines and electrical requirements, these JET Drills are CSA/CUS certified
  • LED Machine Lamp
  • Spindle Guard
  • Emergency Stop
  • Spindle is supported by high quality ball bearings
  • Variable Spindle Speeds from 65 - 2,000 RPM's
  • High Torque at all speeds both forward and reverse
  • Continuous Speed Adjustment while in operation
  • Front Mounted LED Spindle RPM Readout
  • Forward and Reverse for Tapping
  • Front Mounted Postitive Control Depth Stop
  • Large Hand Grips designed with the Users comfort in mind

Jet 354225 Specifications:

  • Style (Type): Variable Speed
  • Drills to Center of Circle (in): 20
  • Drilling Capacity Cast Iron (In.): 1-1/2
  • Drilling Capacity Mild Steel (In.): 1-3/8
  • Tapping Capacity Cast Iron (In.): 7/8
  • Tapping Capacity Mild Steel (In.): 3/4
  • Distance Column to Spindle (In.): 10-7/16
  • Number of Spindle Speeds: Variable
  • Range of Spindle Speeds (RPM): 65-540 /245- 2,000
  • Column Diameter (In.): 4-1/2
  • Spindle Taper (In. x TPI): MT-3
  • Spindle Travel (In.): 6
  • Spindle Distance to Base (In.): 44-1/2
  • Spindle Distance to Table (Max.) (In.): 30-1/4
  • Table Size (L x W) (In.): 22x18-3/4
  • Table Travel (In.): 20
  • T-Slots Number and Size (In.): 3 & 5/8
  • T-Slot Centers (In.): 7-7/16
  • Work Table Weight Capacity (Lbs.): 154
  • Base Dimensions (In.): 27 x 19
  • Base Slots Number & Size (In.): 2 & 5/8
  • Motor (HP): 2 HP, 230V 3ph
  • Overall Dimensions (L x W x H) (In.): 38.18 x27.16 x 79.52
  • Weight (Lbs.): 792
Model# 354225
Brand Jet
